Product Description

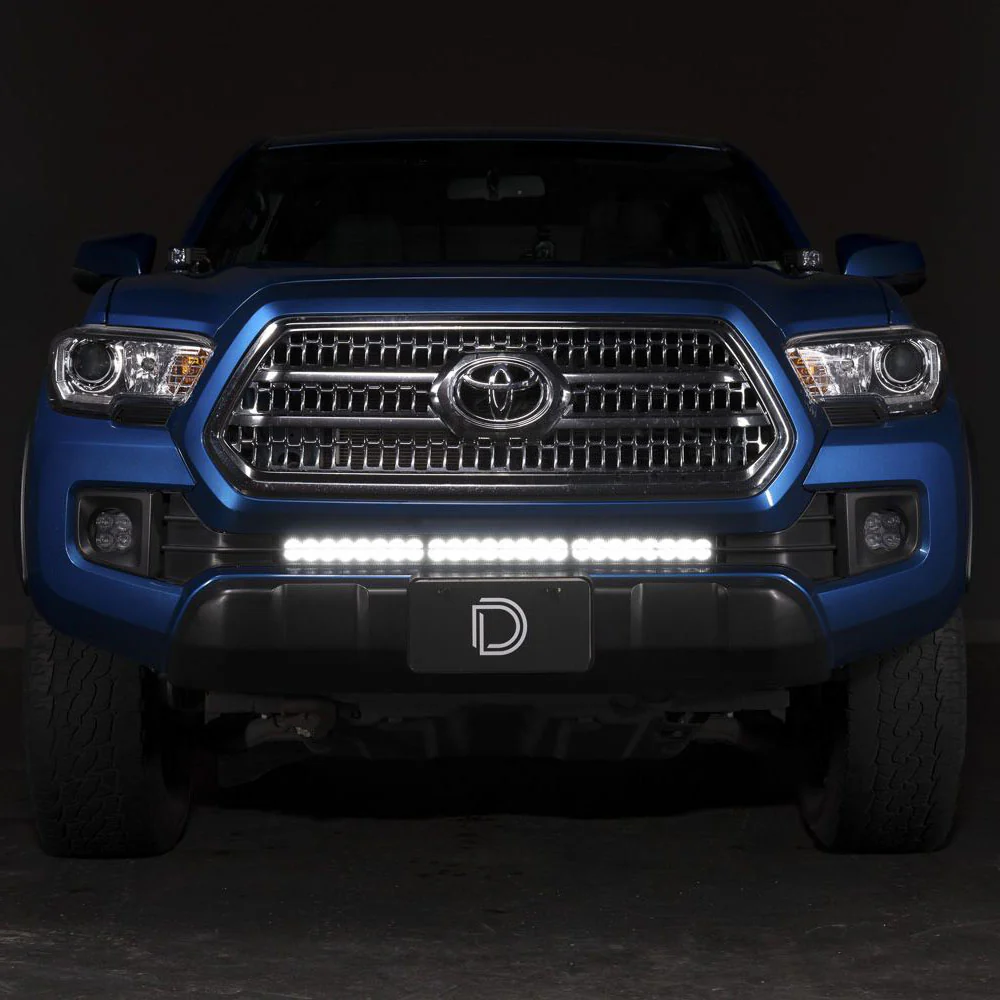

Elevate both style and function at your Tacoma’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your Tacoma.

Fitment Notes

Fits all 2016-2023+ Tacoma's

Included

1 - Stealth Bracket Kit
1 - SS30 LED Light Bar
1 - Heavy Duty Lightbar Wiring Harness
Mounting Hardware

Product Specs

Color Temp (CCT): 3000K, 6000K
Beam Angle: Combo (Driving and Flood), Driving, 20°x8°
Power (watts): Sport: 120, Pro: 165
Operating Voltage: 9-24V
Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Connector(s): Deutsch DT Input
Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
Cooling: Passive, heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure

Product Features

Flush-mounted design keeps your Tacoma’s front-end clean while delivering strong lighting output
Strong beam projection improves visibility during off-road, low-light, and highway situations
Robust, weather-proof construction handles trail abuse and varied climates
Designed for streamlined installation using existing mounting points—no major modifications required
Perfect for overland builds, daily drivers, or any Tacoma that demands premium lighting performance

Color/Optic/Power Level	Peak Beam Intensity (candela)	Illuminance (lux @ 10m)	Raw Output (lumens)	Output Color
SS30 White SAE Driving Sport	233,000 cd	2,330 lux	11,064 lm	6000K White
SS30 White SAE Driving Pro	288,000 cd	2,880 lux	37,632 lm	6000K White
SS30 Yellow SAE Driving Sport	181,000 cd	1,810 lux	11,064 lm	3000K Yellow
SS30 Yellow SAE Driving Pro	242,000 cd	2,420 lux	37,632 lm	3000K Yellow
SS30 White Combo Sport	120,000 cd	1,200 lux	11,064 lm	6000K White
SS30 White Combo Pro	163,500 cd	1,635 lux	37,632 lm	6000K White
SS30 Yellow Combo Sport	93,000 cd	930 lux	11,064 lm	3000K Yellow
SS30 Yellow Combo Pro	127,000 cd	1,270 lux	37,632 lm	3000K Yellow
